產品特色:
1. 此型號為此2 amp.系列的代表型號
2. 誤差小、壽命長、體積小、價格相對其他型號便宜
3. 可使用一顆螺絲安裝
4. 最適合在室外檢測氣溫
1. 此型號為此2 amp.系列的代表型號
2. 誤差小、壽命長、體積小、價格相對其他型號便宜
3. 可使用一顆螺絲安裝
4. 最適合在室外檢測氣溫

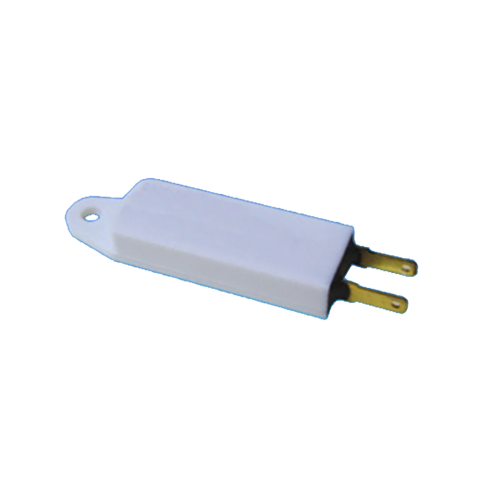

MQT8K
--- TPS (Temperature Power Sensor Controller )
--- 2 Amp. Series for ordinary temperature (-10 °C ~110 °C )
--- Life cycle 100K~100K times
Characteristics:
- Operating voltage : AC125V, DC12V/2A; AC250V, DC24V/1.3A
- Maximum operating voltage : AC250V max., DC48V max
- Temperature setting range : - 10 °C ~110 °C
- Differential : A rank(3 +/-1), B rank(4.5+/-1.5), C rank(6.5+/-1.5), D rank(10+/-2)
- Temperature setting tolerance : +/-3 when the temperature is below 50°C
Feature:
- Standard model of the 2 Amp. series with mounting holes.
- With a 150mm lead
- Size: 44 x 12.5 x 6.4 mm
